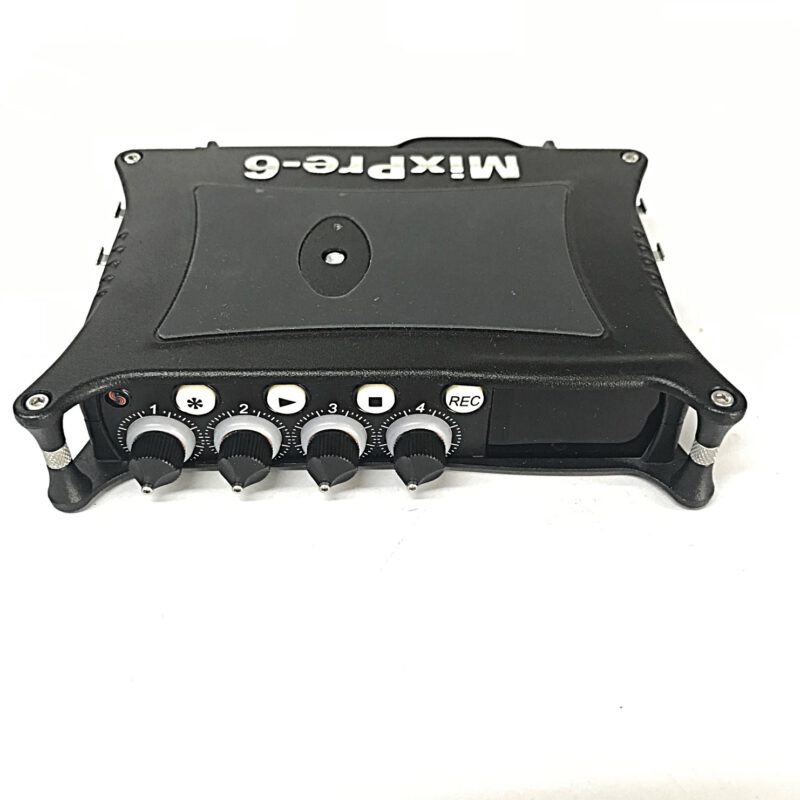

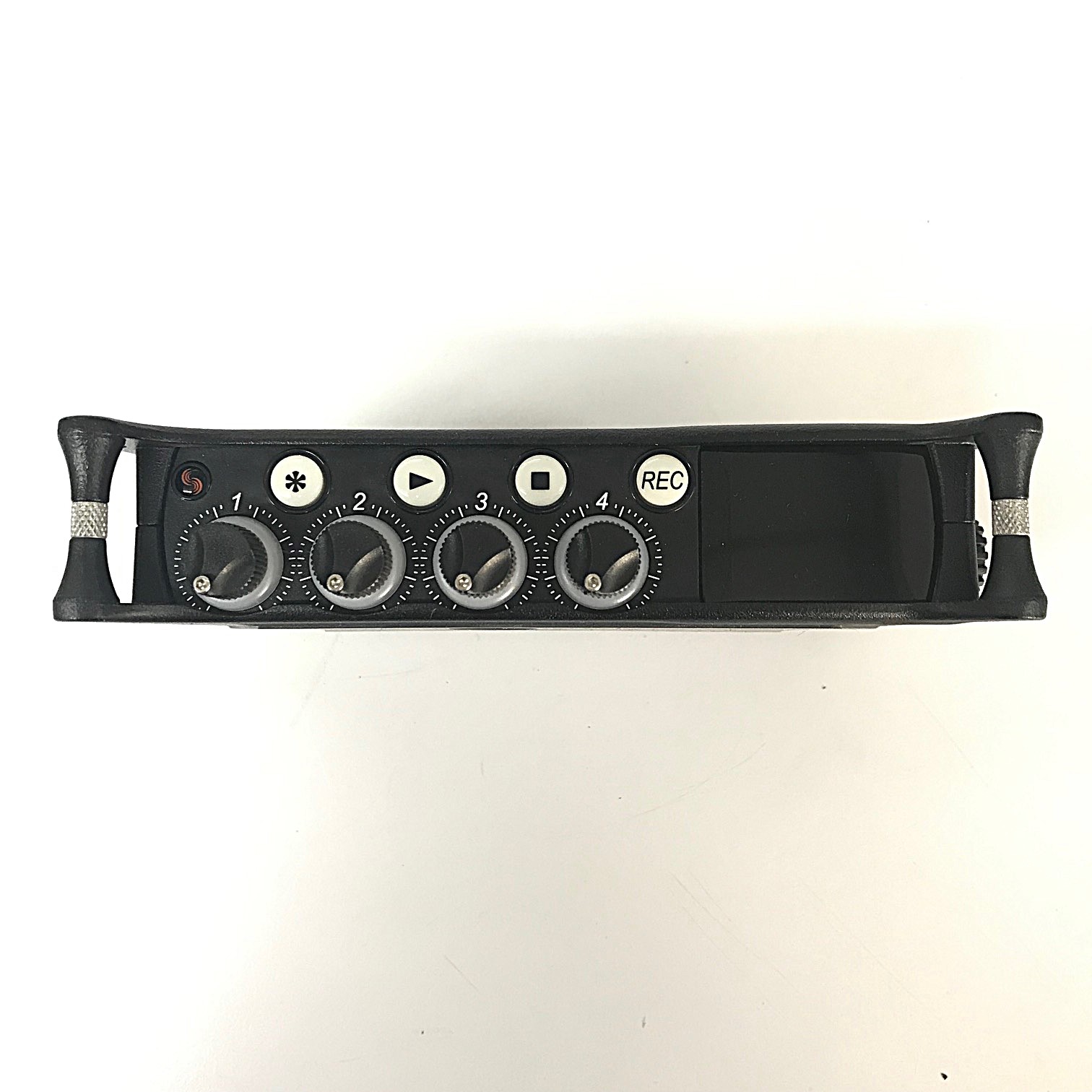

Sound Devices MixPre-6

FREQUENCY RESPONSE
10 Hz to 80 kHz +/- 0.5 dB re 1 kHz @ 192 kHz sample rate
THD + NOISE
0.005% max (@1kHz, 22-22kHz BW, gain=20dB, -10dBu in)
ADC*
32 bit precision; 120dB dynamic range min (A-weighted, gain=10dB,
fader=0dB)

EQUIVALENT INPUT NOISE
-130 dBV (-128 dBu) max (A-weighting, gain = 76 dB, 150 ohm source
impedance)

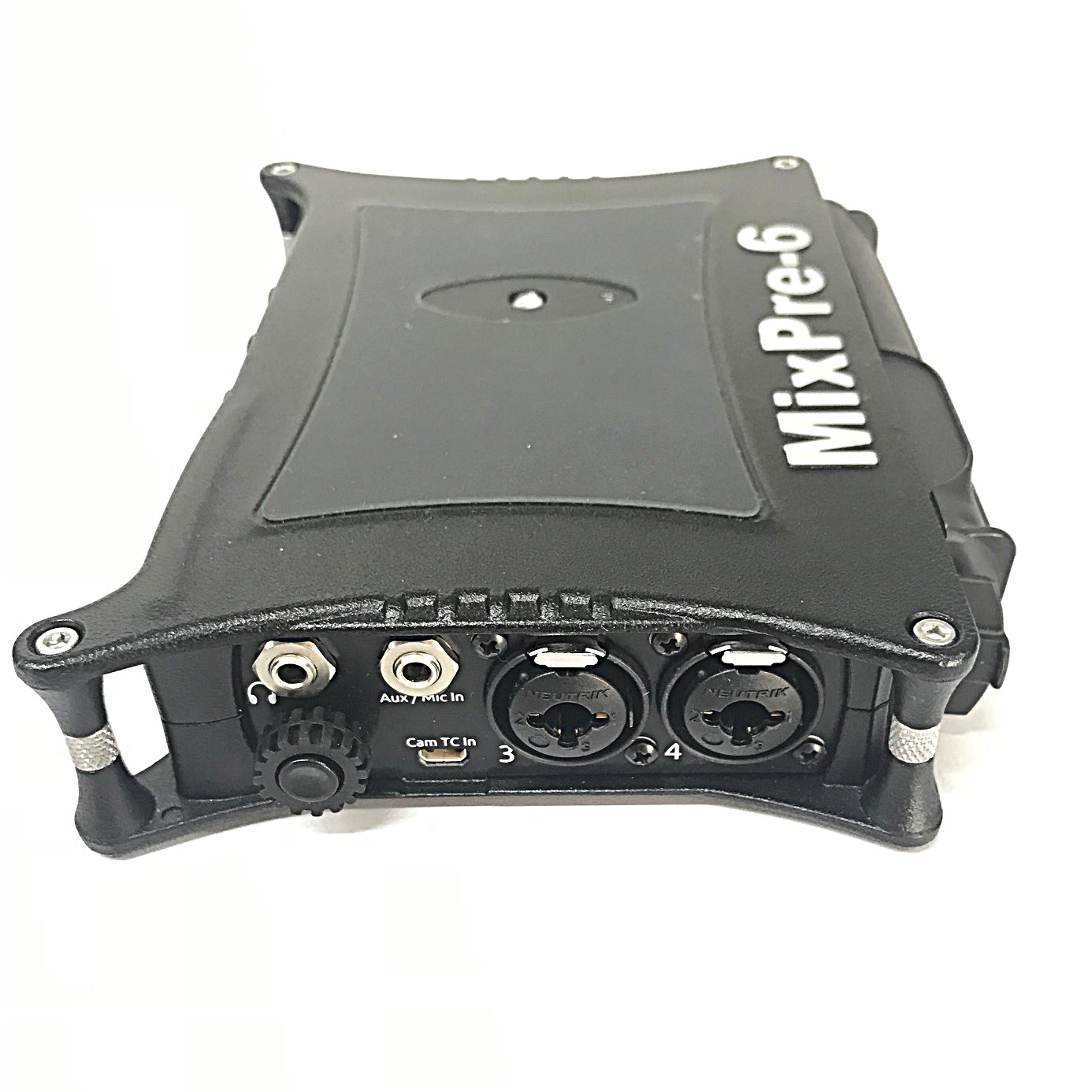

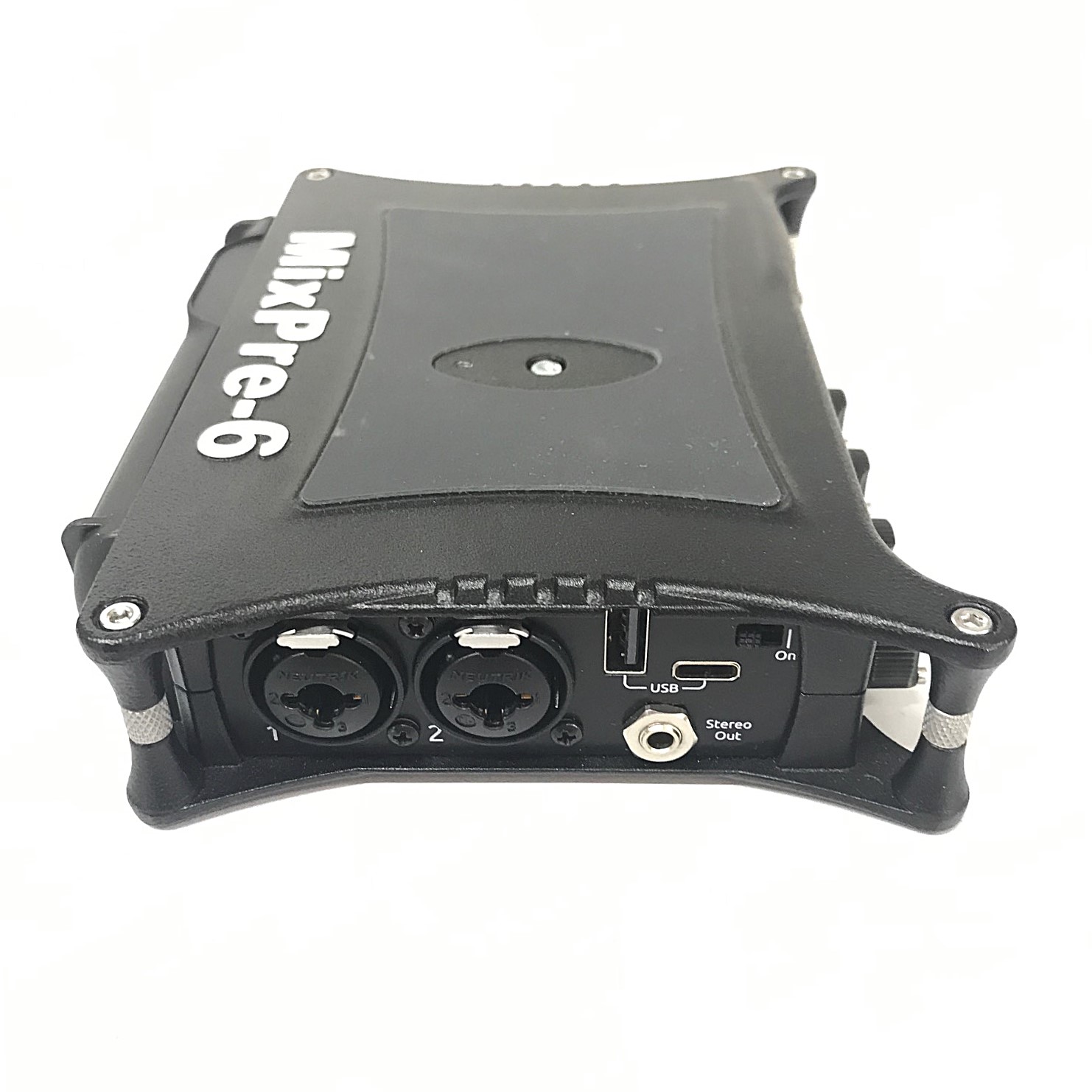

INPUTS
Mic: XLR active-balanced; 4k input Z
Line: XLR active-balanced; 4k input Z
Aux/Mic in: 3.5 mm TRS, 2-channel unbalanced; 2.2k
Line: ¼-inch TRS active-balanced; 4k input Z
USB Audio: 4 channels
All inputs fully RF-filtered and overload protected

GAIN
Mic input: +6 dB to +76 dB
Line input: -20 dB to +30 dB
Fader: -inf to +20 dB
Headphone: -inf to +20 dB
Total, Mic-to-recording (max): +96 dB
Aux In (Mic): Gain = +10 dB to +40 dB
Aux In (Line): Gain = -10 dB to +20 dB
Total Aux Gain including Fader (Mic-to-recording): +60 dB

MAXIMUM INPUT LEVEL
Mic XLR: +14 dBu (limiters on or off)
Line XLR/¼-inch: +28 dBu (limiters on or off)
Aux In (Mic): -10 dBu
Aux In (Line): +10 dBu
